Specification
REF | Holes | Length |
021140004 | 4 holes | 40mm |
021140005 | 5 holes | 49mm |
021140006 | 6 holes | 58mm |
021140008 | 8 holes | 76mm |
021140010 | 10 holes | 94mm |

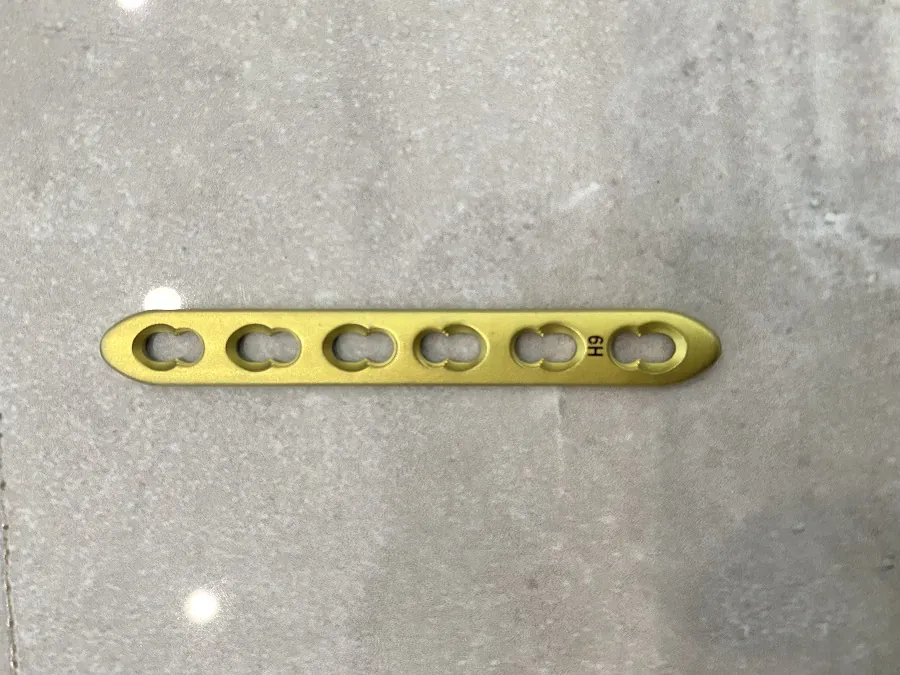

Actual Picture
Blog
If you're a surgeon or medical professional, you're likely familiar with the mini straight locking plate 2.7 mm. This small but powerful plate is a vital tool in orthopedic surgery, particularly for small bone fractures and fusions. In this article, we'll provide a comprehensive guide to the mini straight locking plate 2.7 mm, including its uses, advantages, disadvantages, and more.
A mini straight locking plate 2.7 mm is a small, low-profile plate made of stainless steel or titanium. It is used in orthopedic surgery to treat small fractures or fusions in bones, particularly in the upper extremities. The plate is designed to be implanted subcutaneously, allowing for a less invasive surgical approach. It has multiple screw holes, allowing for secure fixation of the plate to the bone.
The mini straight locking plate 2.7 mm has a variety of uses in orthopedic surgery, particularly in the upper extremities. It is commonly used for the following:
Fractures of the clavicle, humerus, ulna, and radius
Fusions of the wrist, elbow, and shoulder
Osteotomies of the radius and ulna
The mini straight locking plate 2.7 mm is particularly useful in cases where the bone is too small for larger plates or when a more minimal surgical approach is desired.
One of the main advantages of the mini straight locking plate 2.7 mm is its small size. This makes it an excellent option for small bone fractures or fusions where larger plates would be unnecessary or difficult to use. Additionally, the plate is designed to be implanted subcutaneously, allowing for a less invasive surgical approach. The multiple screw holes on the plate also allow for secure fixation of the plate to the bone, reducing the risk of displacement or loosening.
While the mini straight locking plate 2.7 mm has many advantages, there are also some disadvantages to consider. One potential disadvantage is the limited number of screw holes on the plate. This can make it more challenging to achieve stable fixation in some cases. Additionally, the small size of the plate may make it more difficult to manipulate during surgery.
The surgical technique for the mini straight locking plate 2.7 mm is relatively straightforward. First, the plate is selected based on the size and location of the fracture or fusion. Next, the plate is contoured to fit the bone using a bending iron. The plate is then positioned on the bone, and screws are inserted through the plate and into the bone to secure it in place.
As with any surgical procedure, there are potential complications associated with the use of the mini straight locking plate 2.7 mm. These can include:
Infection
Implant failure
Loosening or displacement of the plate
Nerve or blood vessel injury
However, with proper surgical technique and postoperative care, the risk of complications is relatively low.
The mini straight locking plate 2.7 mm is a vital tool in orthopedic surgery, particularly for small bone fractures and fusions in the upper extremities. Its small size and subcutaneous implantation make it an excellent option for minimal surgical approaches. While there are potential disadvantages and complications associated with its use, the benefits of the mini straight locking plate 2.7 mm make it a valuable tool in the orthopedic surgeon's arsenal.
How does the mini straight locking plate 2.7 mm differ from other locking plates?
The mini straight locking plate 2.7 mm is smaller and designed for use in small bone fractures and fusions, particularly in the upper extremities. Its subcutaneous implantation allows for a less invasive surgical approach.
What types of fractures can the mini straight locking plate 2.7 mm be used for?
The mini straight locking plate 2.7 mm can be used for fractures of the clavicle, humerus, ulna, and radius.
Are there any limitations to using the mini straight locking plate 2.7 mm?
The mini straight locking plate 2.7 mm has a limited number of screw holes, which can make it more challenging to achieve stable fixation in some cases. Additionally, the small size of the plate may make it more difficult to manipulate during surgery.
What are the potential complications associated with the mini straight locking plate 2.7 mm?
Potential complications include infection, implant failure, loosening or displacement of the plate, and nerve or blood vessel injury.
How can the risk of complications be reduced when using the mini straight locking plate 2.7 mm?
Proper surgical technique and postoperative care can help reduce the risk of complications associated with the use of the mini straight locking plate 2.7 mm. Close monitoring of the patient is also essential to detect and address any potential issues early on.
